Garrett GT/VNT 15-25 39*33.1 mm 11 blades 740611 / 782403 Hyundai Lavita [Matrix] shaft wheels
DESCRIPTION
Balanced Individual Piece (Recommend Assembly and Cartridge Balancing With Your Compressor Wheel )
| Name | turbine wheels, turbo shaft wheels, shaft&wheel |
| Model | GT/VNT 15-25 |
| Fit turbocharger | 740611-0001 740611-0002 740611-0003 740611-0005 766111-0001 782403-0001 782404-0001 751418-0002 755925-0001 |
| SN No. | 740611-0003 |
| Material | K418+42CrMo |
| Application | Hyundai Lavita [Matrix] 1.5L Toyota Yaris / Corolla 1.36L |
| Balancing Test | < 5mg.mm / 30000RPM |
DIMENSION
The turbine wheel is one of the most important parts of a turbocharger.It is resposible to transform the
energy from an engine’s exhaust gases into kinetic energy.As the turbine wheel rotates, it spins the
turbine shaft, which in turn spins the compressor wheel.When it works,it always be in a high temperature
environment.So the only material can be selected to manufacturer turbine wheel is the Inconel austenitic
nickel-chromium-iron alloy,a high strength investment casting.The materials now in wide use is K418.
| WEIGHT(KG) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 0.11 | 39 | 33.1 | 5.5 | 7.88 | 5.08 |

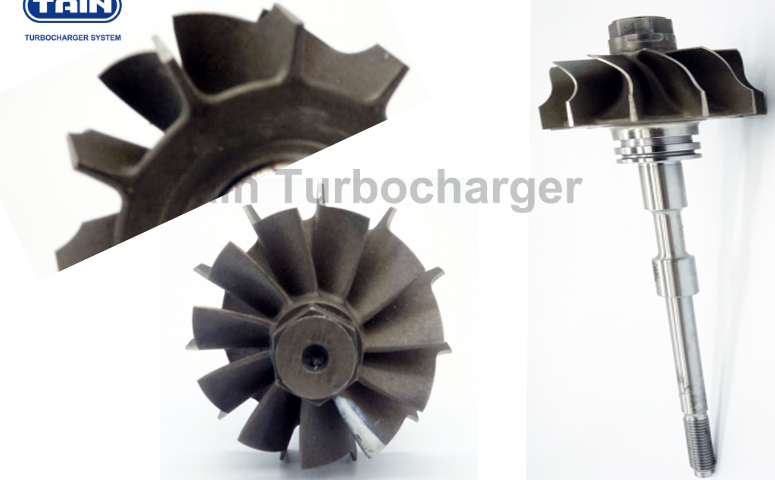

PRODUCT SHOW
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset: HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
PACKING INFORMATION
Inner packing: anti-rust paper,plastic bag,PE foam.
Outer packing: Neutral box,export carton with cushioning and shock proof packaging.
Supply customized package.
